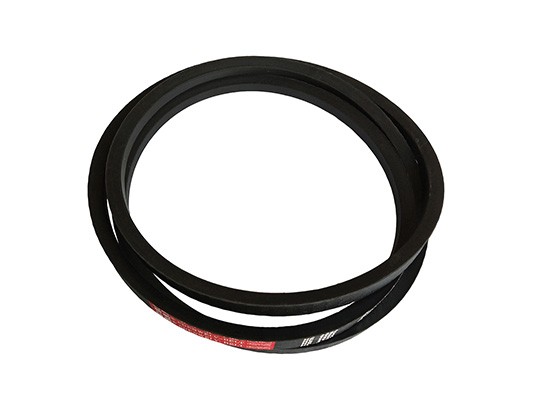

Agriculture Belt
- Agriculture Belt are specially designed for heavy-duty drives.
- Available Types: HA, HB, HC, HD, HSPB, HSPC, H3V, H5V, H8V
- Standard: ISO 4184 / BS 3790
- Available Grades: Normal, -K (Kevlar)
- Other Names: Farm belt, Harvester belt
Cross-Sectional Sizes:
| Section | Top Width(mm) | Thickness(mm) | Angle(Degree) |
| HA | 13.0 | 8.0 | 40 |
| HB | 17.0 | 11.0 | 40 |
| HC | 22.0 | 14.0 | 40 |
| HD | 32.0 | 19.0 | 40 |
| HSPB | 17.0 | 14.0 | 40 |
| HSPC | 22.0 | 18.0 | 40 |
| H3V | 9.7 | 8.0 | 40 |
| H5V | 15.8 | 14.0 | 40 |
| H8V | 25.4 | 23.0 | 40 |
Features:
- Superior oil & heat resistance, high efficiency up to 98%;
- High power rating is up to 50% more than normal belt;
- Longer service life & less machine down-time;
- Anti-static complies with ISO 1813 standard;
- Temperature range: -25°C to +100°C;
- Suit for harsh weather conditions and the most strenuous operations.
Application:
- Best suited for drives with CLAAS, NEW HOLLAND, CASE, JOHN DEERE, ROSTALMASH, WORLD, ZOOMLION, KUBOTA etc combine harvester.
